Conquest BO-133 46-Spindle Dual-Row Line Boring Machine | 4 HP | 220V 3-Phase
Have one to sell?
ConditionUsed
1 available
$6,495.00 USD

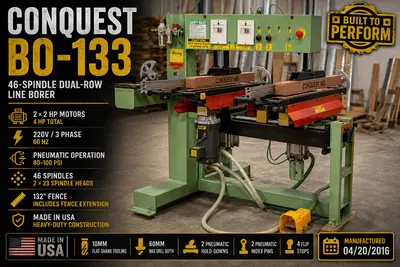

The Conquest BO-133 is a heavy-duty, American-made dual-row line boring machine designed for fast, accurate production boring in cabinet and woodworking applications. With 46 total spindles arranged in two 23-spindle heads, the BO-133 provides excellent drilling capacity while allowing both heads to be operated independently.
This machine features two 2 HP motors, pneumatic operation, adjustable drilling heads, pneumatic hold-downs, and a long production fence system for efficiently processing larger workpieces. The included fence extension adds additional flexibility for larger components and production setups.
This 2016 Conquest BO-133 is a solid production machine for a cabinet shop, millwork operation, or woodworking facility looking for the productivity of a dual-row boring machine without the cost of a new machine.

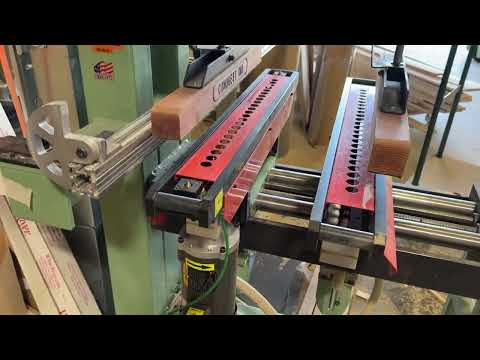

Machine is available for inspection and can be demonstrated in operation.
Machine Type: Double-Row Line Boring Machine
Spindles: 46 — (2) rows of 23
Motors: (2) 2 HP Baldor
Spindle Speed: 3,450 RPM
Power: 220V / 3 Phase / 60 Hz
Drilling Direction: Bottom-up
Maximum Drilling Depth: 2-3/8" (60 mm)
Spindle Centers: 32 mm
Collets: 10 mm
Head Opening: 5-1/2" to 27"
Table Height: 37-1/2"
Fence: 132" capacity
Fence Extension: Included
Hold-Downs: (2) Pneumatic
Index Pins: (2) Pneumatic
Flip Stops: (4)
Head Adjustment: Mechanical digital readouts
Controls: Air/electrical controls
Cycle Activation: Foot pedal
Position Indicator: Included
Manufacture Date: 04/20/2016
Made In: USA
