Used 2024 CANTEK AMERICA MX340 | Edgebanders
Have one to sell?
$14,950.00 USD
ConditionUsed
1 available
High quality edge banding results for cabinet parts and case goods.

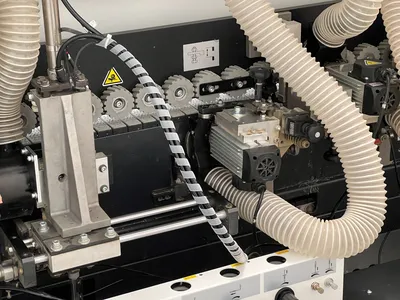

The Cantek MX340 Automatic Edgebander is a compact edgebander capable of applying up to 3mm thick edge tape on cabinet parts and more. It comes equipped with high frequency motors on both the end trim and top & bottom trim. In addition it is equipped with PVC radius scraping and buffing units. It’s compact design and affordable price point make it the ideal edge banding solution for the small cabinet shop who does not require pre-milling.
Feeding speed 29 FPM / 9 meters/min.
Panel thickness 0.315”~1.77”/ 8~45 mm
Edge thickness 0.0158”~0.118” / 0.4 ~ 3 mm
Min. panel width 4”
Min. panel length 6.7”
Working table height 33.5”
Dust collection outlet Ø 5” x 2
Total connected power 7.4 HP
Machine dimensions (LxWxH) 116” x 44” x 55”
Machine weight 1144 lbs
Electrical requirement
230/1/60: 37 amps
Teflon coated Quick Change glue pot can be removed and exchanged in only minutes.
Comes with (1) quick change pot and others can be acquired for running different color glues.
Automatic edge feeding with a thickness capacity of 0.4–3 mm; strip material can be hand-fed
Conveyor chain feed system for reliable results
Heated infeed fence for pre-heating the panel for optimum glue penetration
PLC control system with LED display and keypad
Workpiece is fed by chain
Edge coil support plate: Ø 800mm (31 ½”), for PVC/ABS
Spring-loaded pressure unit with (2) pressure rollers
Heavy-duty pressure beam with extendable workpiece support
