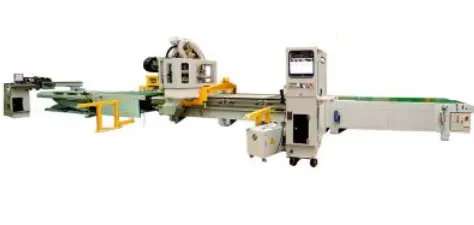

Anderson Stratos Pro CNC Router
Have one to sell?
ConditionNew
New
3-axis machining centers set a new level of CNC accuracy and machining performance. The combination of a highly rigid base, steel weldments and castings and high accuracy Servo System make the STRATOS machining centers an ideal choice for machining wood, MDF, plywood, plastic, honeycomb aluminum and solid surface materials.
Basic configuration STRATOS Pro
Standard Controller FANUC
HP 18 / 24 / Vector
Taper/Cone HSK-63F
Max RPM 24.000 rpm
Cooling(std) air-cooled
Optional Cooling water-cooled
No. of Tools for Ride Along Automatic Tool Changer 10 / 12 / 16
Boring Block Options 5 + 5
10 + 7+1+1
13+7+1+1
10|10+10|10
Table Size Options (Ft) 5 x 12
5 x 20
5 x 24
5 x 30
Z-Axis Height Options: 350 mm
400 mm
450 mm
500 mm
600 mm
No. of Vacuum Zones 4
Part Locating Pop-Up Pins 11 or 16
Table top part material Hi-pressure phenolic-grid
Table base Steel Construction
Optional Vacuum Pumps(HP) 10 / 25 / 40 HP
Auto Tool Length Setter inclusive
Manual Jog Control(MPG) inclusive
Aluminum Table Top optional
Bar code reader optional
Touch Screen optional
C-axis optional
Reverse Air Flow for Vacuum Table optional
Mister for cutting tools optional
Automated Material Handling optional
Manual Material Handling optional
